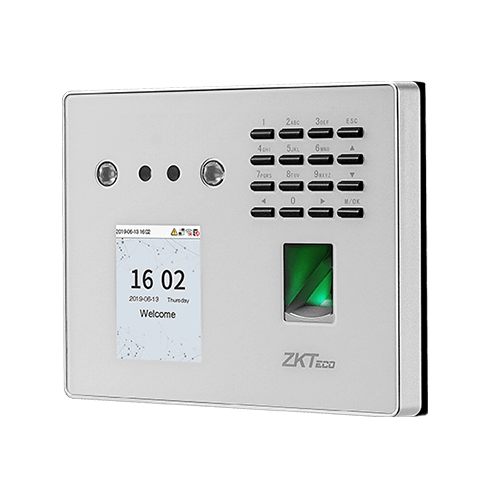

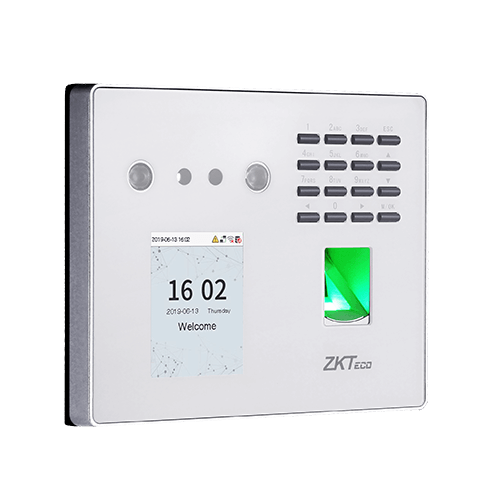

ZK Teco MB560

Model

MB560-VL

Order ID

AC01-SP07H-P21

Display

2.8"@ TFT Color LCD Screen (240*320)

Camera

Binocular Camera @ 1MPWDR

Operation System

Linux

Hardware

CPU: Dual Core @1.0GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Supplement Light: Yes
Physicall Keypad: 16 Keys
Fingerprint Sensor: ZK Optical Sensor

Authentication method

Fingerprint / Face / Card / Password (Physical Keypad)

Fingerprint Capacity

3,000 (Optional: 5,000)

Face Capacity

3,000 (Optional: 5,000)

Card Capacity

10,000 (1: N)

User Capacity

10,000 (1: N)

Transaction Capacity

100,000 (Optional: 200,000)

Max. User Password Length

8 Digits

Biometric Authentication Speed

less than 0.5 sec (Fingerprint), less than 0.35 sec (Facial Authentication)

Touchless Biometric Recognition Distance

30cm to 200cm (Facial Authentication)

False Acceptance Rate (FAR) %

≤0.01% (Facial Authentication)
≤0.0001% (Fingerprint)

False Rejection Rate (FRR) %

≤0.02% (Facial Authentication)
≤0.01% (Fingerprint)

Biometric Algorithm

ZKFace V4.0
ZKFingerprint V13.0 (Standard) / V10.0 (Optional)

Card Type

ID Card@125 kHz (Optional)
IC Card@13.56 MHz (Optional)

Optional Multi-Tech Module
Module1: ID & IC & DESFire EV1/EV2; (125 kHz & 13.56 MHz Dual Frequency)

Communication

TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax)) @ 2.4 GHz (Optional)
Electric Lock*1, Door Sensor*1, Exit Button*1

Standard Functions

ADMS, DST, Work Code, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Tamper Switch Alarm, Multiple Verification Methods, T9 Keyboard (Input), HTTPs / SSH Backend Access, Schedule Bell, Automatic Status Switch

Optional Functions

125KHz ID Card (EM) / 13.56MHz IC Card / 125 kHz & 13.56 MHz Dual Frequency ID & IC Card, Wi-Fi

Power Supply

DC 12V 1.5A

Operating Temperature

0°C to 45°C

Operating Humidity

20% to 80% RH (Non-condensing)

Dimensions

170mm*138mm*38.55mm (L*W*H)

Supported Software

On-Premise Software: ZKBio Time / ZKBio CVAccess (TA Module)
Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile APP)

Installation

Wall-mount

Certifications

ISO14001, ISO9001, CE, FCC
