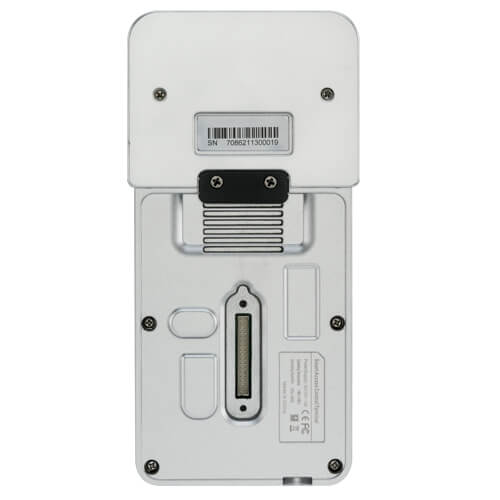

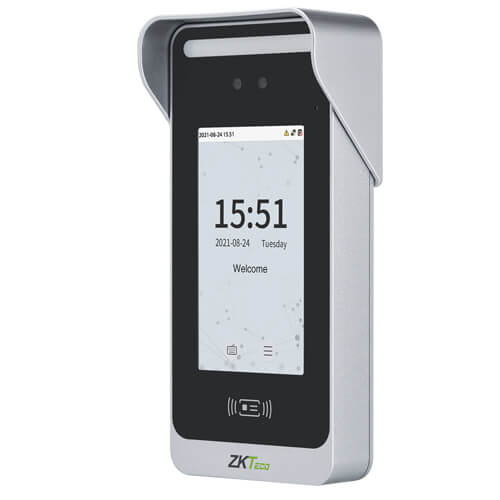

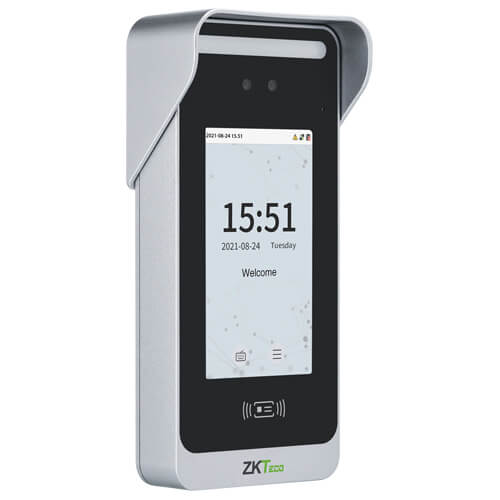

ZK Teco SpeedFace M4

Model

SpeedFace M4

Order ID

AC01-SP30H-P25

Display

5"@ ISP Color LCD Screen (1280*720)

Camera

Binocular Camera @ 2MP WDR

Operation System

Linux

Hardware

CPU: Quad Core A53 @1.2GHz
RAM: 1GB; ROM: 8GB
Supplement Light: No
Virtual Keypad: 16 Keys
Casing Color: Metallic silver

Authentication Method

Face / Card / Password (Virtual Keypad) / Palm (optional and coming soon)

Face Template Capacity

10,000 (1: N)

Palm Template Capacity

3,000 (1: N, optional and coming soon)

RFID Card Capacity

10,000 (1: N)

User Capacity

10,000 (1: N)

Transaction Capacity

200,000 (Optional : 500K)

Max. User Password Length

8 Digits

Biometric Authentication Speed

less than 0.1 sec (Facial Authentication, Field Test Result)
less than 0.14 sec (Palm Authentication, Field Test Result)

Touchless Biometric Operating Lighting Environment

40cm to 140cm (Facial Authentication)
18cm to 40cm (Palm Authentication, optional and coming soon)

False Acceptance Rate (FAR) %

≤0.01% (Facial Authentication)
=0.01% (Palm Authentication)

False Rejection Rate (FRR) %

≤0.02% (Facial Authentication)
=1.3% (Palm Authentication)

Biometric Algorithm

ZKFace V6.0 & AMTPalmvein V32

Dimension

103.83 * 212.41 * 50.60 (mm) (W*H*D)

Card Type

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
HID Prox@125 kHz (Optional)
Felica Card@13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)

QR Code

Dynamic QR code on the ZKBio CVAccess mobile application (By Face Camera)

Communication

TCP / IP*1
Wi-Fi (IEEE802.1b / g / n / a) @ 2.4 GHz / 5 GHz (Optional, and coming soon)
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, 12V Output*1

Standard Functions

ADMS, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch (Effective only under T&A rules), Multiple Verification Methods, T9 Keyboard (Input), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, Mask Detection, Dynamic QR Code (by camera)

Optional Functions

Webserver, Video Door Phone: SIP Client (Version2.0), ONVIF (Compatible with Profi le S, Profi le T, Profi le G, Profi le C, Profi le Q & Profi le A), Wi-Fi, POE, SRB, External Bell

Video Intercom

Video Intercom(ZKTeco Private Protocol via TCP / lP)
Support Devices:
Standalone Terminal: SpeedFace M4 (Only ZAM210 Platform)
Indoor Monitor: VT07-B01, VT07-B01-W

Video Intercom (Standard SIP Protocol)
Support Devices:
Standalone Terminal: SpeedFace M4 (Only ZAM210 Platform)
Indoor Monitor: VT07-B22L, VT07-B26L-W
Software: ZKBio CVAccess, BioTalk Pro
Mobile App: ZKBio Zlink, ZKBio Zexus

Access Control Interface

RS485 (RS485 Card Reader / Biometric Reader)

Power Supply

DC 12V 3A (Optional)
POE: IEEE 802.3at (Optional)

Operating Temperature

-10°C to 50°C (14°F to 122°F)

Operating Humidity

10% to 90% RH (Non-condensing)

Dimensions

212.42mm*103.83mm*50.60mm (L*W*H)

Gross Weight

1.32 Kg

Net Weight

0.77 Kg

Supported Software

On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)
Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)

Installation

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

Ingress Protection Rating

IP66 (waterproof and dustproof )

Certifications

ISO14001, ISO9001, CE, FCC
