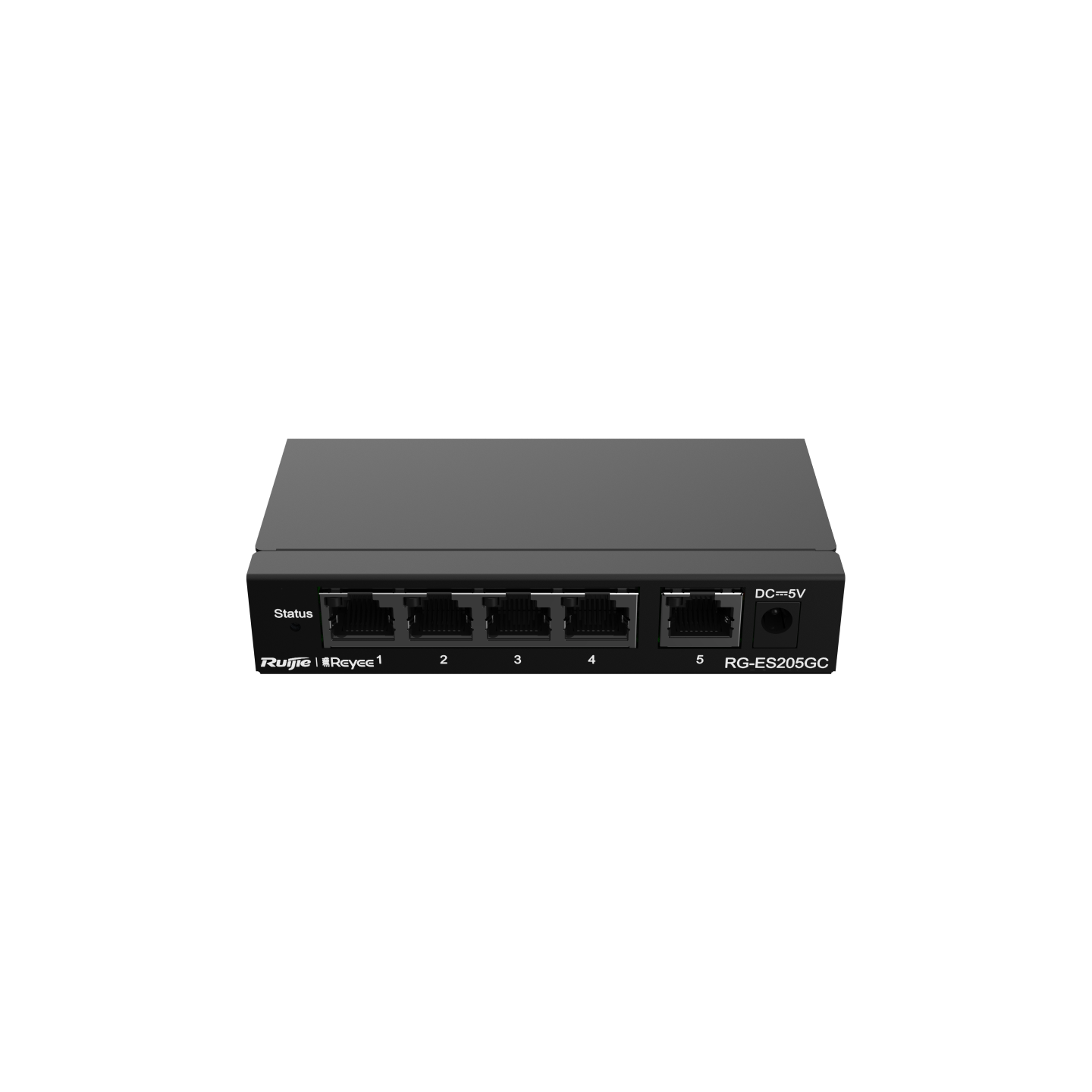

Ruijie-Reyee RG-ES205GC-P 5-Port Gigabit Smart POE Switch

4 Gigabit PoE+ Ports: Features 4x 10/100/1000BASE-T RJ45 ports with PoE/PoE+ (IEEE 802.3af/at, up to 30W per port), ideal for powering IP cameras, VoIP phones, or APs like the RG-RAP2260(E).
54W PoE Power Budget: Provides a total PoE budget of 54W, supporting small-scale deployments with up to three PoE devices, such as CCTV cameras or access points.
1 Gigabit RJ45 Uplink Port: Includes 1x 10/100/1000BASE-T RJ45 uplink port for high-speed connections to routers like the RG-EG310GH-E or additional switches.
IP Camera Recognition: Automatically detects IP cameras and NVRs, supporting offline alarms, port reboot, and VLAN configuration for optimized CCTV networks.
Ruijie Cloud Management: Enables remote monitoring, configuration, and diagnostics via the Ruijie Cloud platform or mobile app, streamlining network management for SMBs.
Self-Organizing Network (SON): Facilitates plug-and-play setup with zero-touch provisioning, automatically configuring VLANs and ports without cloud dependency.
Automatic Loop Prevention: Detects and blocks network loops to ensure service continuity, minimizing downtime in small office or surveillance networks.
Layer 2 Management Features: Supports up to 16 VLANs, QoS for traffic prioritization, port mirroring for diagnostics, and storm control for network stability.
4 kV Surge Protection: Protects ports from electrical surges, ensuring reliability in environments with unstable power conditions.

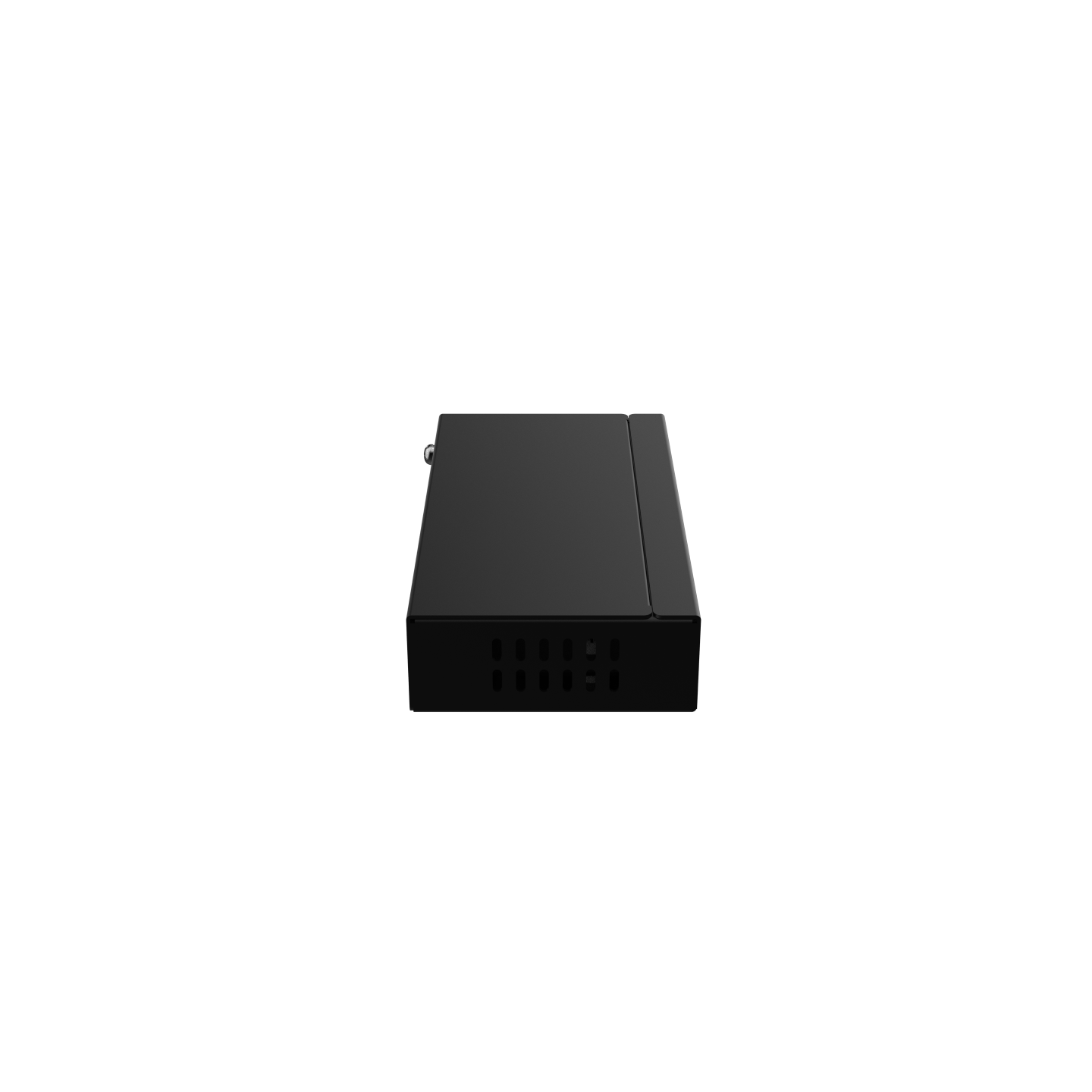

Fanless Design: Utilizes natural cooling for silent operation, suitable for noise-sensitive settings like small offices, retail, or educational environments.
Compact Desktop Steel Case: Durable and compact (148mm x 78mm x 26mm, ~0.9 kg with package) steel enclosure supports desktop or wall-mount installation.
Energy-Efficient Operation: Consumes ≤60W (including PoE) with a 54V/1.1A DC power supply, reducing power costs for small-scale networks.
High Reliability: Boasts an MTBF >200,000 hours, ensuring long-term stability for business-critical applications.
3-Year Warranty: Offers a 3-year limited warranty (2 years in some regions, e.g., Cambodia), with support until at least February 20, 2028, despite end-of-sale status.
Port Status Monitoring: Supports real-time port status display, traffic statistics, PoE output control, and flow control configuration via Ruijie Cloud for efficient management.
