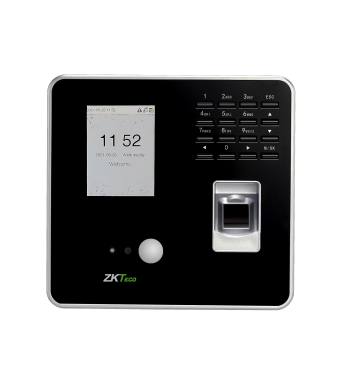

ZK Teco MB20-VL

MB20-VL is a touchless multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and Visible Light facial recognition technologies, the device can recognize a target in the distance from 30cm to 50cm. It will automatically operate when it detects a human face in the detection distance  to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial  recognition terminals. With the applied Deep Learning algorithm, the pose angle tolerance and anti-spoofing ability against the dynamic Together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules, MB20-VL must be the best fit in various working environments satisfying different customer’s needs.

SPECS

• Display: 2.8-inch TFT Screen
• Face Capacity: 100 (Optional:800)
• Fingerprint Capacity: 500 (Optional:800)
• Card Capacity: 500 (Optional),Max.800
• Transactions: 50,000 (Optional:150,000)
• Communication: TCP/IP, USB Host, WiFi (Optional)
• Standard Functions: ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit
• Hardware: 1GHz Dual-Core CPU, 256MB RAM/256MB Flash, 1MP Binocular Camera
• Operation System: Linux
• Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button
• Optional Functions: 125kHz ID Card (EM) / 13.56MHz IC Card, WiFi Biometrics Algorithm ZKLiveFace V3.5 / ZKFinger V10.0
• Facial Recognition Speed ≤1s
• Power Supply: 5V 2A
• Working Humidity: 20% to 80%
• Working Temperature: 0°C to 45°C
• Dimensions: (W*H*D) 161.93*152.93*31.50 (mm)
• Supported Software: ZKBio Access IVS (T&A)
