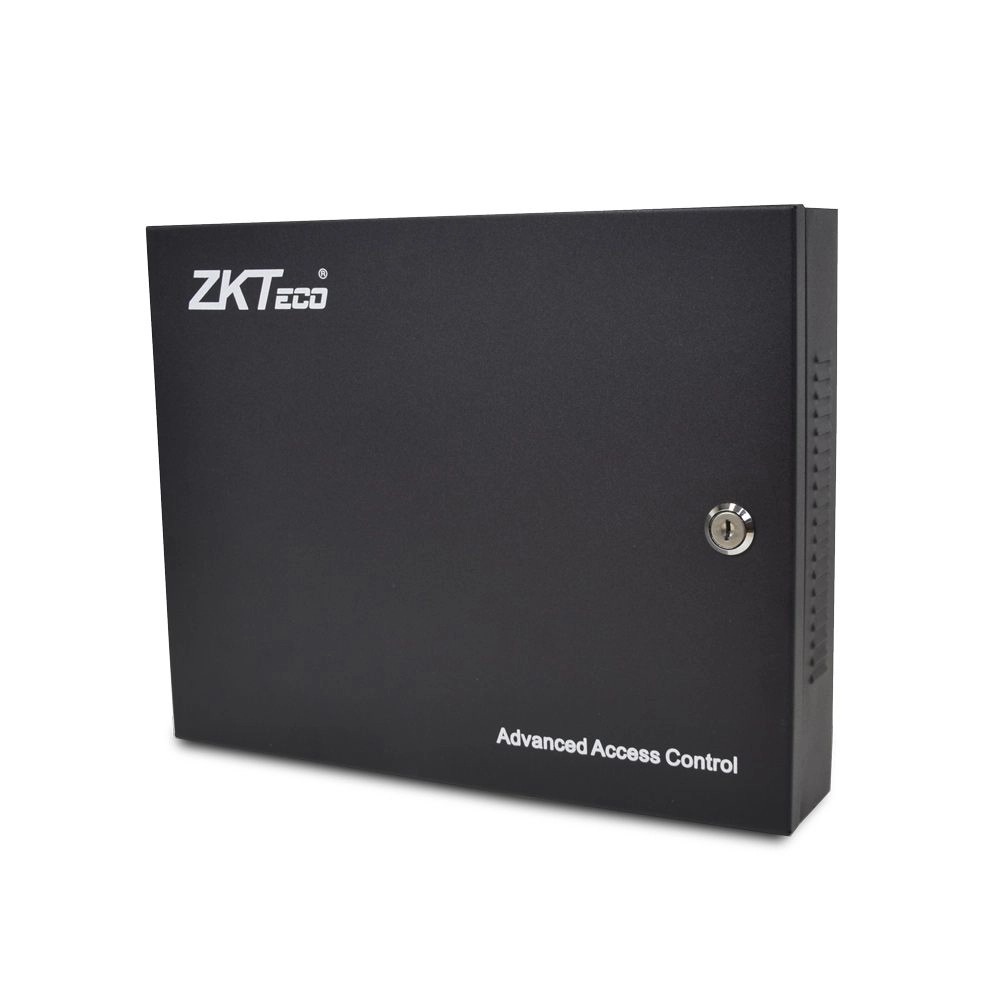

ZK Teco C3-400 Package B

Model
C3-400 Plus

Operation System

Linux OS

Hardware

CPU: Single Core @ 1.0GHz
RAM: 128MB; ROM: 256MB

Authentication Method

Card / Password / QR Code

Access Point Capacity
C3-400 Plus: 4 Access Points

Reader Capacity
C3-400 Plus: 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers

IO Expansion Board Capacity

8pcs EX0808 (RS-485 connection)

User Capacity

100,000

Card Capacity

100,000 (1:N) (Standard)

QR Code Capacity

100,000 (Static QR Code / Dynamic QR Code)

Transaction Capacity

500,000 (Standard)

Number of Inputs
C3-400 Plus: 4 * Exit Button, 4 * DoorStatus, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)

Number of Outputs
C3-400 Plus: 4 * Form C Relay orLock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)

Max. Card Length

Supports up to 66 bits Card Length

QR Code

QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVAccess mobile application.

Communication
C3-400 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP *1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4; Aux Outputs * 4; Electric Lock * 4, Door Sensor * 4; Exit Button * 4; Alarm * 4

Standard Functions

Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods

Access Control Interface

Wiegand (Card Reader)
RS-485 ( RS-485 Card Reader / QR Code Reader)

Power Supply

9.6V - 14.4V DC

Operating Temperature

0℃ to 45℃

Operating Humidity

20% to 80% RH (Non-condensing)

Dimensions (mm)
C3-400 Plus: 215.88 mm*99.14 mm*19.3 mm(L*W*H)

Gross Weight
C3-400 Plus: 0.357 Kg

Net Weight
C3-400 Plus: 0.252 Kg

Supported Software

ZKBio CVAccess

Installation

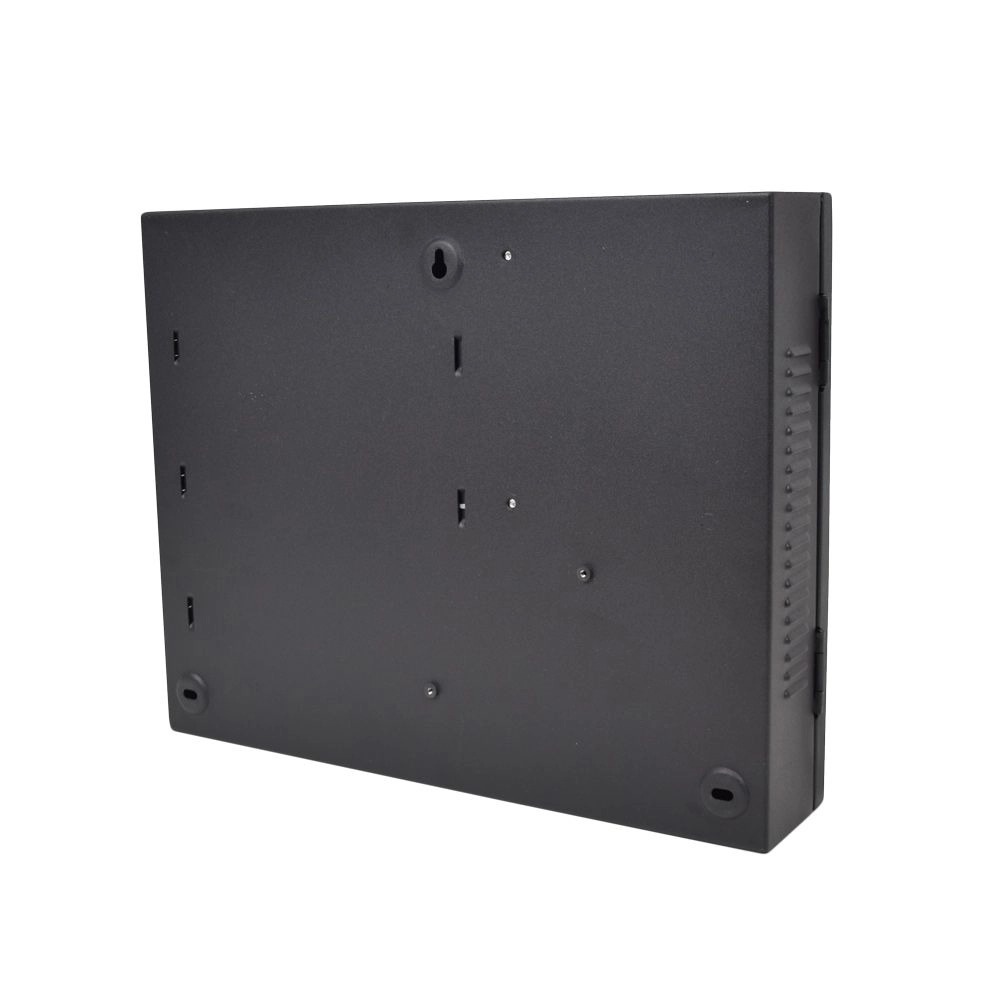

Supported Wall-mount with Metal Enclosure (Optional)

Enclosure (Optional)
C3-400 Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)]; Gross Weight: 3.56Kg

Certifications

ISO14001, ISO9001, CE, FCC, RoHS

Factory ID
C3-400 Plus: AC02-C14H-U10
