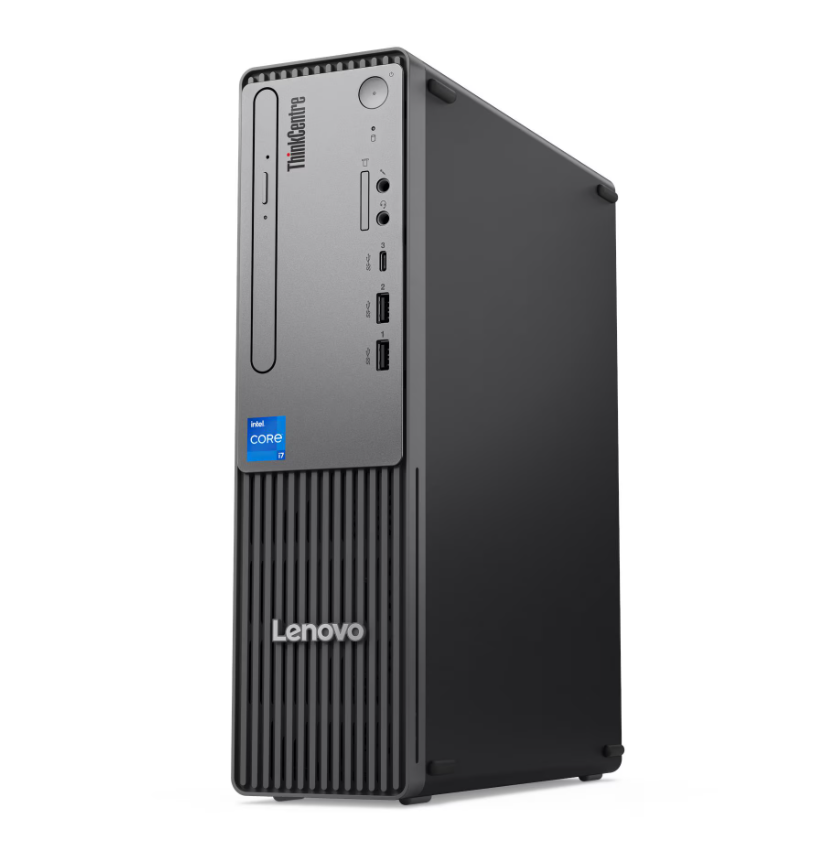

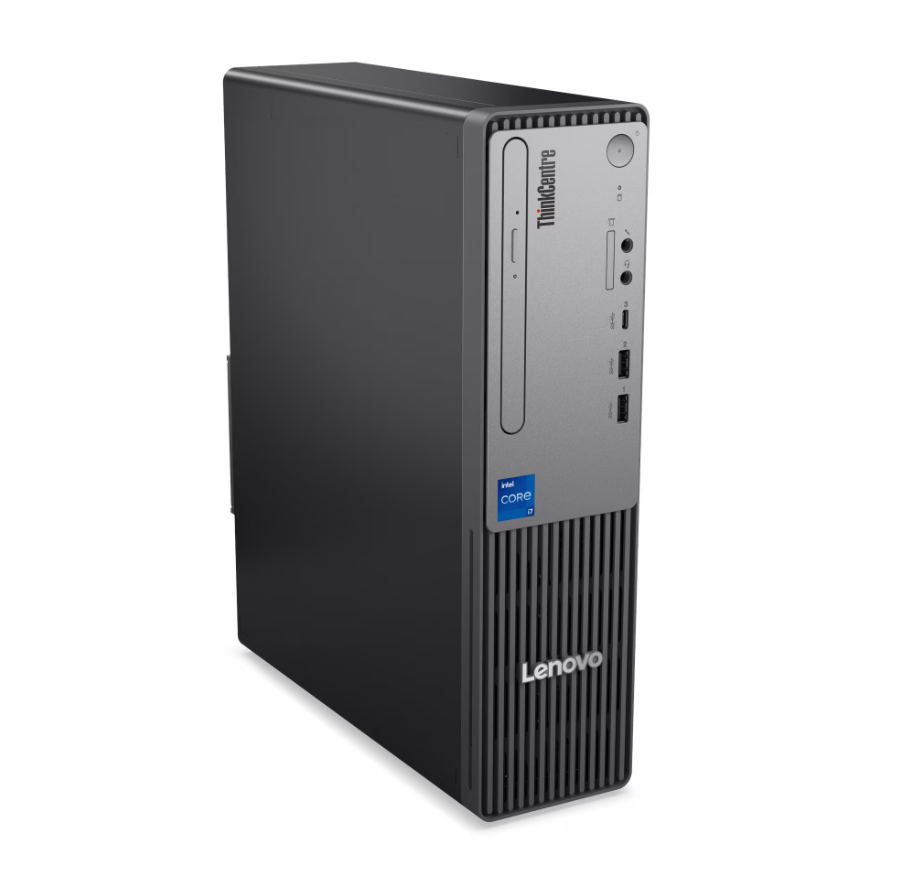

LENOVO ThinkCentre neo 50s Gen 5 Intel® Core i7-14700

Intel® Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB

Graphics

Integrated Intel® UHD Graphics 770

Intel® B760 Chipset

Memory

1x 8GB UDIMM DDR5-5600

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Max Storage Support

• Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB
• For installing HDD storage, 3.5'' HDD screw and grommet kit is needed.

3-in-1 Card Reader

None

High Definition (HD) Audio, Realtek® ALC623-CG codec

1Wx1

260W 90%

USB Calliope Keyboard, Black, English (UK)

USB Calliope Mouse, Black

• One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Two M.2 slots (one for WLAN, one for SSD)

Chassis: Black, Bezel: Grey

None

Pen Not Supported

SFF (8.2L)

Dimensions (WxDxH)

92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches)

Weight

Around 4.2 kg (9.3 lbs)

Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2

Non-WWAN

Integrated 100/1000M

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

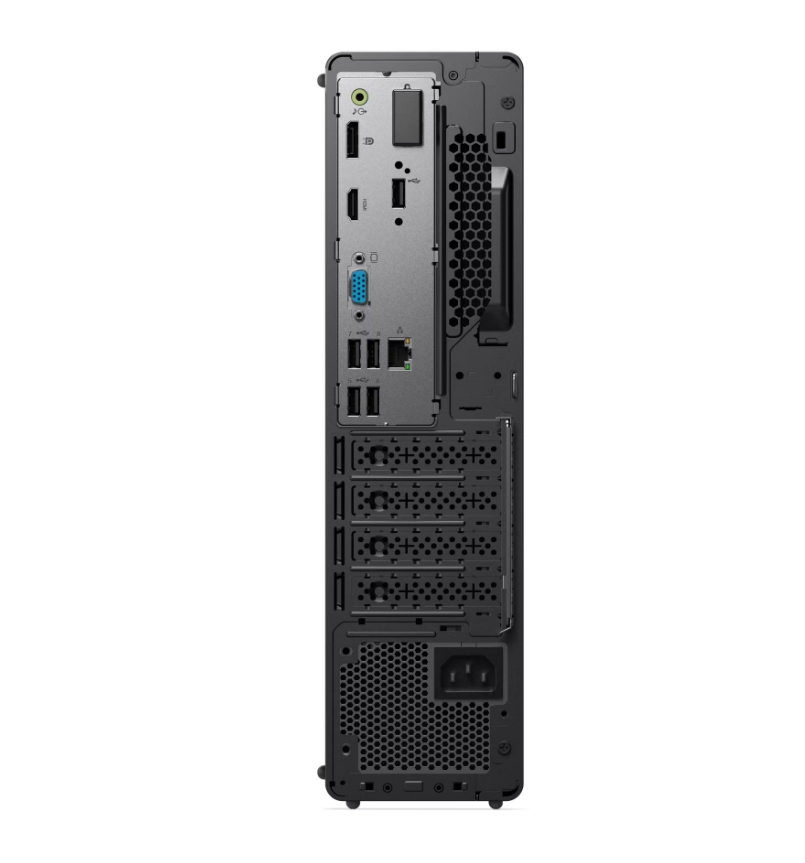

Rear Ports

• 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4
• 1x VGA
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

None

None

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

No fingerprint reader

Kensington® Security Slot™, 3 x 7 mm

None

Chassis Intrusion Switch

None

1-year, Courier or Carry-in
